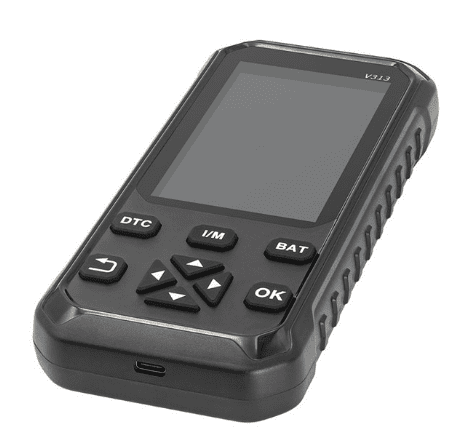

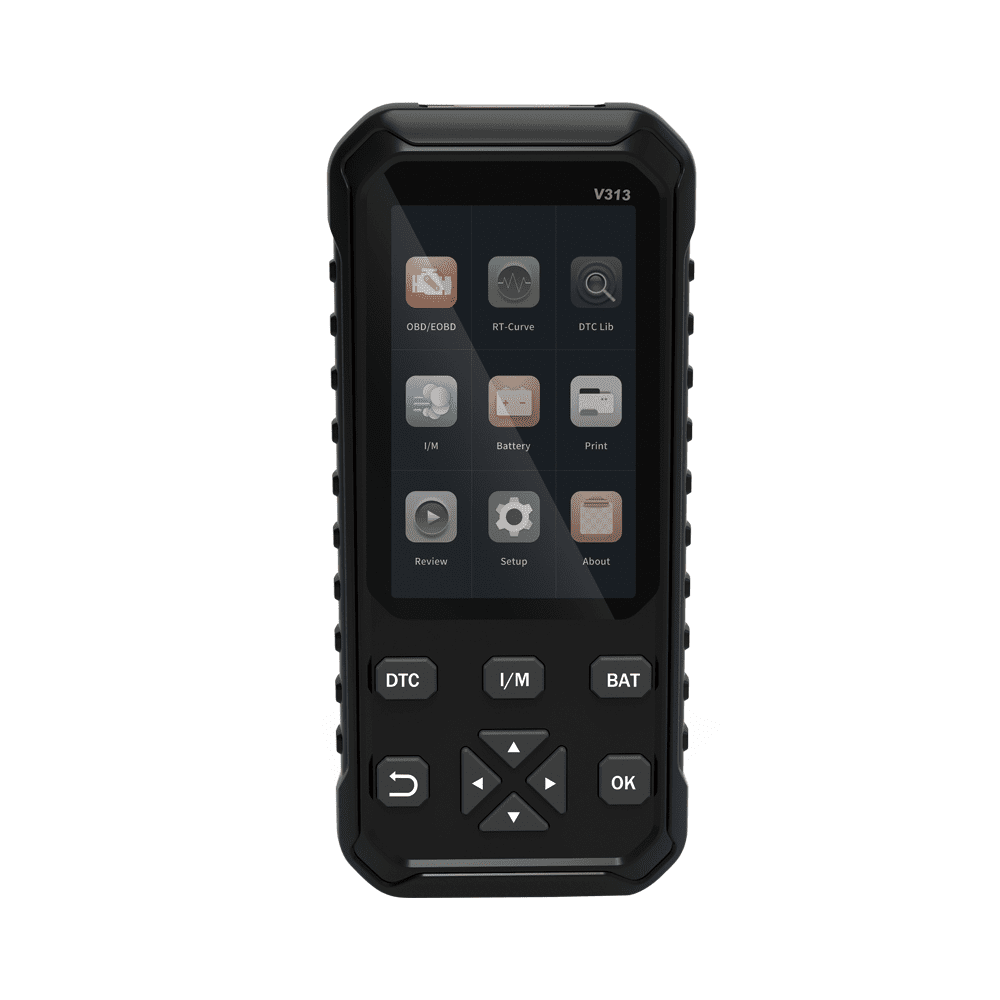

Vehicle information reading code card multi-function battery diagnostic instrument car reading code card + battery tester battery detector two in one

SPU: PSV313

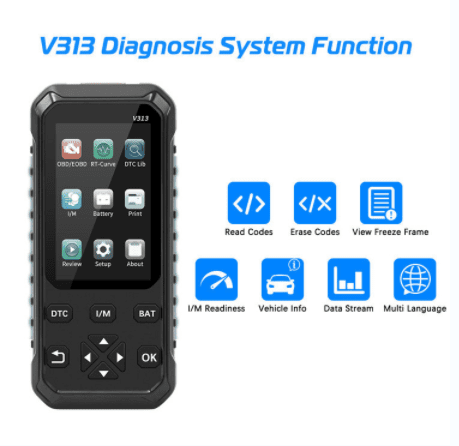

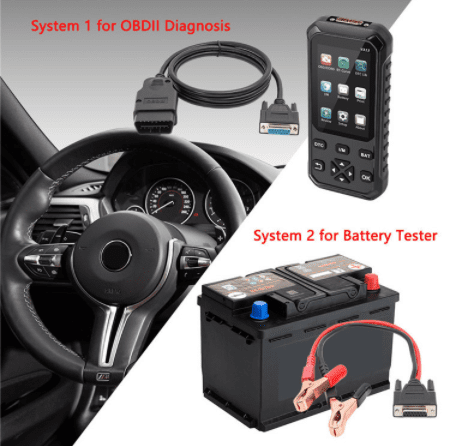

Trade name: OBD 2 car read code card + battery tester battery detector two in one. Bluetooth APP dual-mode operation. Factory Direct Selling (V313 is a multi-function code reading card that integrates OBD general detection; battery detection and printing. It provides accurate vehicle detection; battery detection; and multi-function code reading of the print card test results)

technical parameter

Main control chip: STM32F103VET6

Operating voltage: 12V

Operating current: 98 mA

Operating environment: -20 70℃

Storage temperature: -25 80℃

Overall dimension: 181.5 * 81 * 29mm

Packaging size: 130 * 64 * 285mm

Product weight: 168g

With packaging: 704G

Quantity quantity: 20 pcs

product description

1. 9 standard protocols supporting OBD II / EOBD

2. Support OBD functions such as vehicle-fault diagnosis and real-time data flow

3. It has the function of viewing and saving the fault code information; data flow; battery detection and other data playback functions

4. With emission test data; data storage and playback

5. The data saved in the code read card can be printed through the USB serial port

6. Support for USB upgrade function; upgrade / print

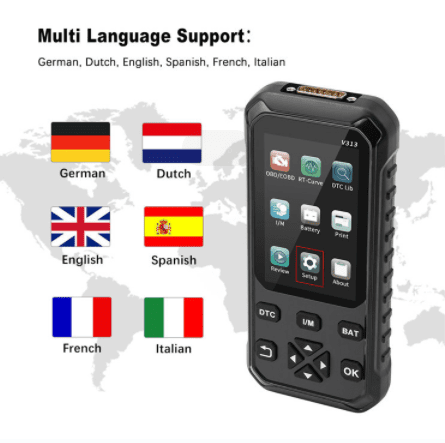

7. Supports 6 languages: German; English; Spanish; French; Italian; and Dutch

8. Quickly test the cold start current; internal resistance; battery life and remaining power of 12V start lead acid battery to determine whether the battery needs to be replaced: real-time voltage detection; battery impedance detection (SOC) battery charging current value (SOH); cold start current detection (CCA)

9. Communication mode; OBD interface

10.CE/FCC/ROHS/UKCA Certification

Support agreement

1. SAE J1850 PWM (41.6Kbaud)

2. SAE J1850 VPW (10.4Kbaud)

3. ISO9141-2(5 baud init; 10.4Kbaud)

4. ISO14230-4 KWP (5 baud init; 10.4 Kbaud)

5. ISO14230-4 KWP (fast init; 10.4 Kbaud)

6. ISO15765-4 CAN (11bit ID; 500 Kbaud)

7. ISO15765-4 CAN (29bit ID; 500 Kbaud)

8. ISO15765-4 CAN (11bit ID; 250 Kbaud)

9. ISO15765-4 CAN (29bit ID; 250 Kbaud)

Vehicle data:

1. Read the error diagnostic code

2. Clear fault code (clear error code and close MIL)

3. Engine RPM per minute (RPM)

4. Calculate the load value

5. Coolant temperature

6. Fuel oil system status

7. Speed

8. Short-term fuel status

9. Long-term fuel conditions

10. Intake-air manifold pressure

11. Early fuel injection time

12. The inlet temperature

13. Air flow velocity

14. Absolute position of the throttle valve

15. Oxygen detection voltage associated with the short-term fuel status

16. Fuel oil system status

17. Fuel oil pressure

18. Fuel consumption monitoring; etc.

Note: The number of data items supported by different model years also varies; and the actual support situation shall prevail.

Vehicle diagnostic tool WiFi Elm327 Fault code quickly clear I / M status detection OBD; adapter fault repair decoder OBD + VAG OBD key Programmer ECU Card Reader Vehicle diagnostic scanner OBD 2 scanner; vehicle fault analyzer diesel vehicle diagnostic tool OBD; adapter OBD II Diagnostic System Battery voltage detection 12V General battery diagnosis cold start current detection multi-function battery diagnostic instrument

Vehicle information reading code card multi-function battery diagnostic instrument car reading code card + battery tester battery detector two in one
Auto Repair OBD + VAG OBD2 Scanner Diesel Vehicle OBD Scan Tool OBD; Adapter Motorcycle Diagnostic Scanner Vehicle Fault Analyser ECU Reader OBD II Diagnostic System Engine Fault Data Read Card WiFi Elm327 OBD Key Programmer Battery Impedance Detection Battery Life Remdual Power Test

OBD Automotive Diagnostic Scanner Diesel Vehicle OBD Scan Tool ECU Reader OBD + VAG OBD Key Programmer WiFi Elm327 OBD II Diagnostic System OBD Reader Motorcycle Diagnostic Scanner Vehicle fault analyzer OBD; Adapter OBD II Diagnostic System 12V Universal battery diagnostic cold start current detection multifunctional battery diagnostic instrument

Reference Price (FOB)
1. Single piece Price; USD147.10
2.≥50set; USD88.24
3.≥100set; USD79.42
4.≥150set; USD71.48
5.≥200set; USD64.33
6.≥250set; USD57.90
7.≥300set; USD52.20

Support one product one generation order business

More commodity specifications and preferential policies; welcome the letter to consult the business
