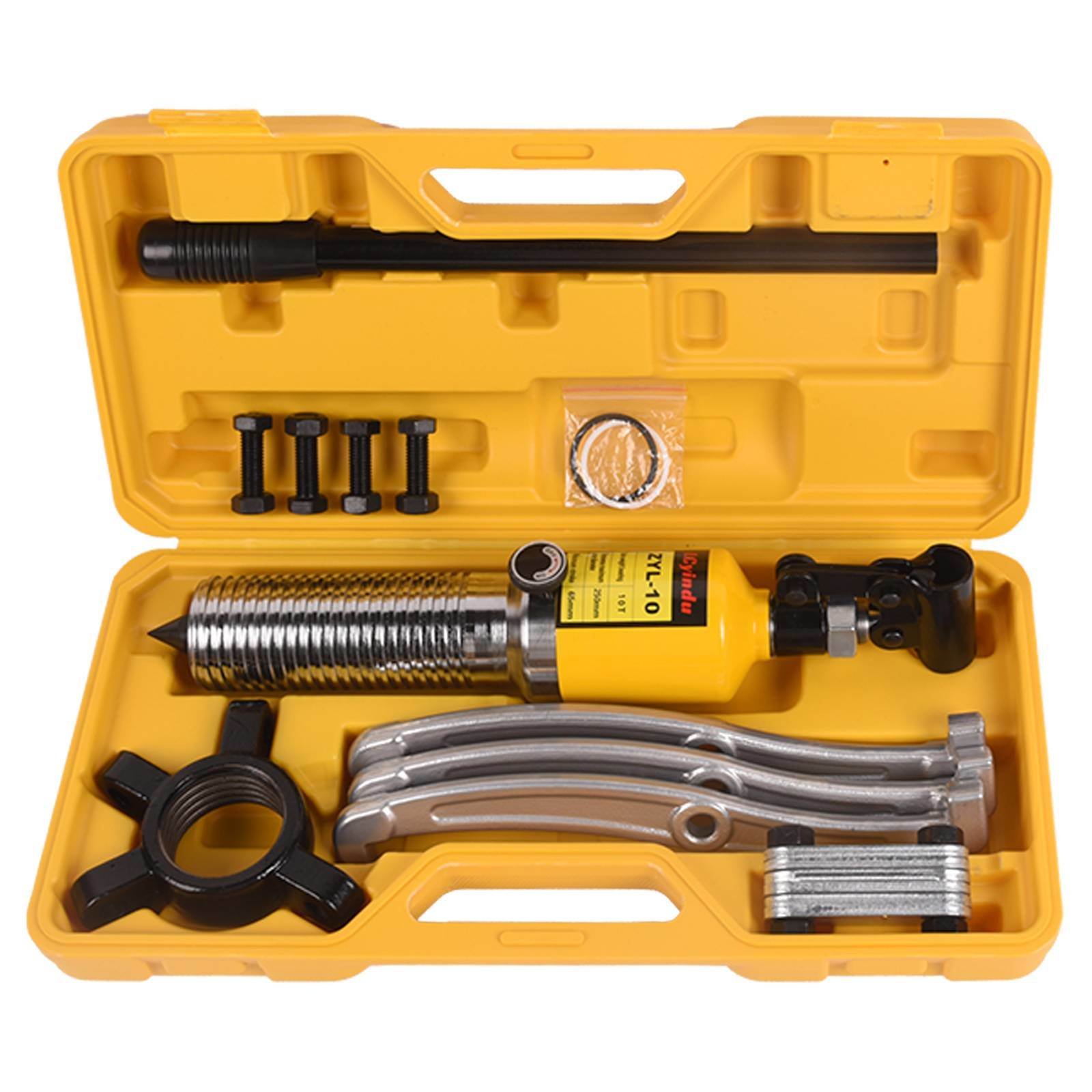

Hydraulic Gear Puller, 10 Ton Hydraulic Puller Kit Bearing Puller, Separator Tool for Pulling Hubs, Bearings, Gears, ZYL-10
1.ZYL-10 10T hydraulic puller can be operated horizontally or vertically without site restrictions. It has 2.36" / 60mm axis travel with 6.3" / 160mm max. reach and 9.84" / 250mm max. spread.

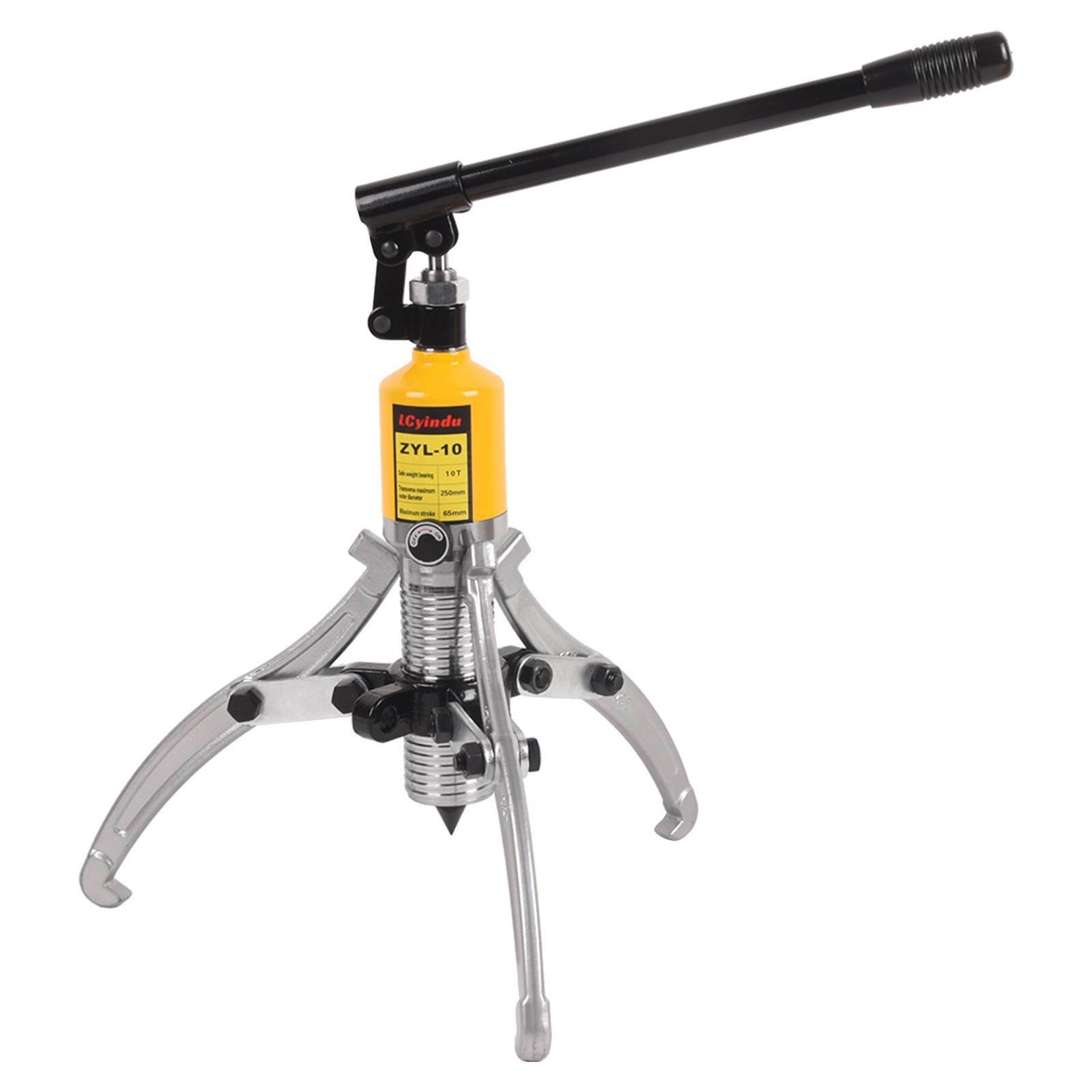

2.You can install two or three jaws and adjust the height as required. In addition, the pump head of the hydraulic bearing puller can rotate 360 degrees.
3.The hydraulic gear puller is made of heavy-duty forged alloy steel, featuring superior strength and no oil leakage. It's very sturdy and possesses 10T maximum capacity
4.Safety overflow valve to avoid overload, including centralized positioning device.
5.It has a wide range of applications, and is suitable for railway vehicle maintenance, mechanical installation, mine maintenance, construction engineering support, etc.
Details:

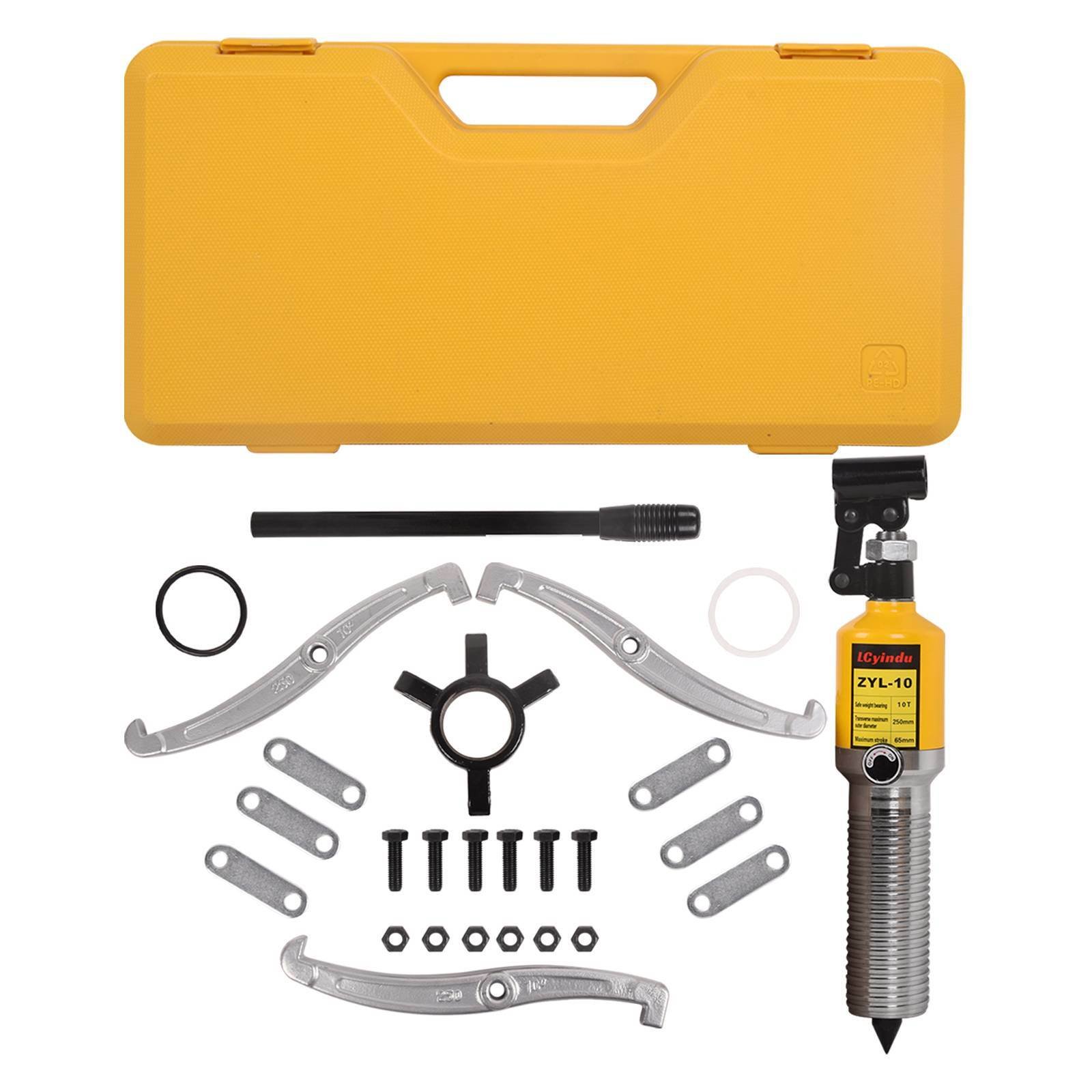

2/3 of the claw shared, suitable for use in different places.

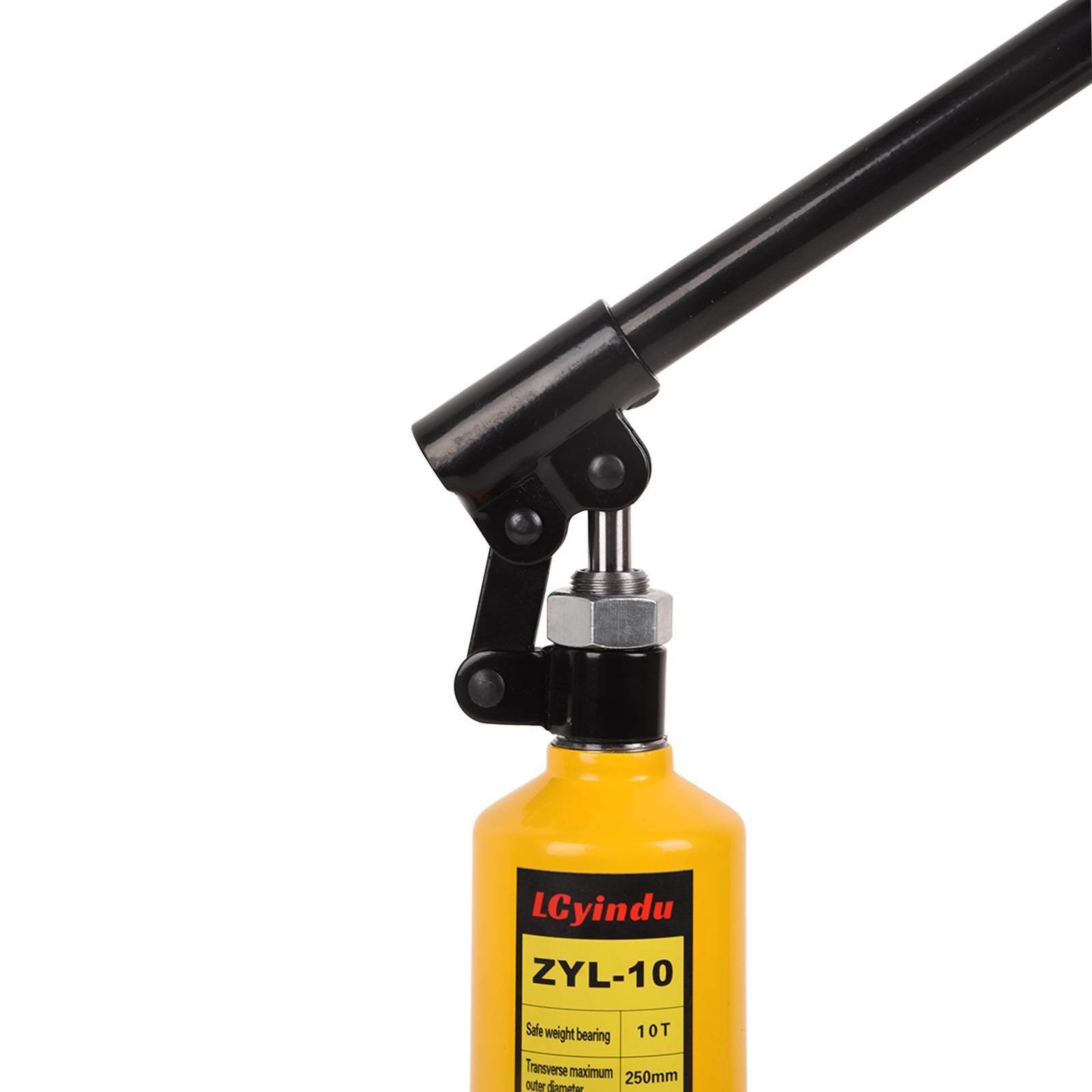

Detachable handle with 360 pressure dispersion design, easy to use in restricted space.
Flexible thimble design for accurate center positioning.
High alloy steel forging, not easy to deformation.
Hydraulic cylinder is made of solid steel, high safety factor.
Quick positioning adjustment nut design, save time and effort.
Max. Capacity: 10 ton / 22046 lbs
Axis Travel: 2.36" / 60mm
Min/Max. Reach(Vertical Operation):0-6.3" / 0-160mm
Min/Max. Spread(Horizontal Operation): 2"-9.84" / 50-250 mm
Ram Stroke(Thimble stroke): 2.36" / 60mm
Thread diameter: 2.36" / 60mm
Jaws: 2 or 3 Changeable
